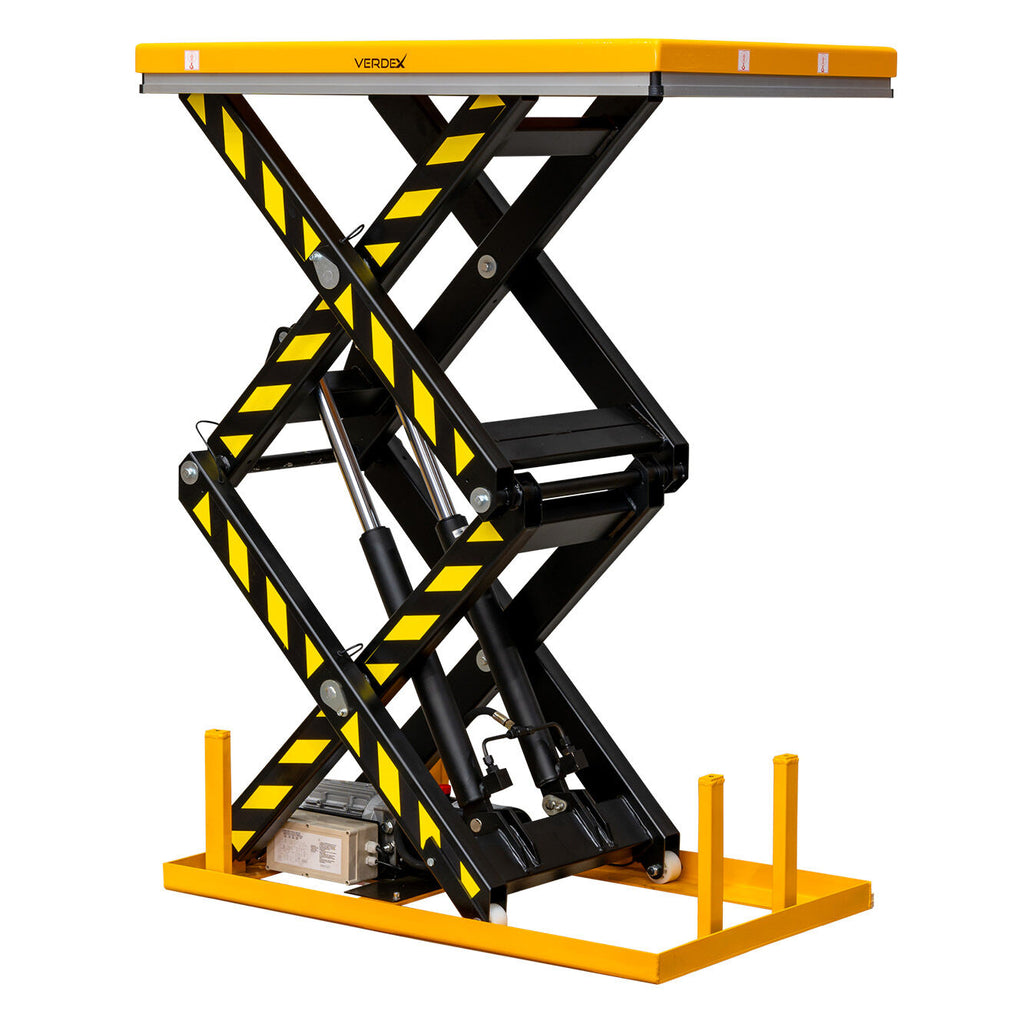

4000kg capacity Double Scissor Electric Lift Table
Lift tables can be applied in many work places to increase productivity and safety. Loads can be elevated or lowered to optimum heights at the push of a button.
Features:-
-

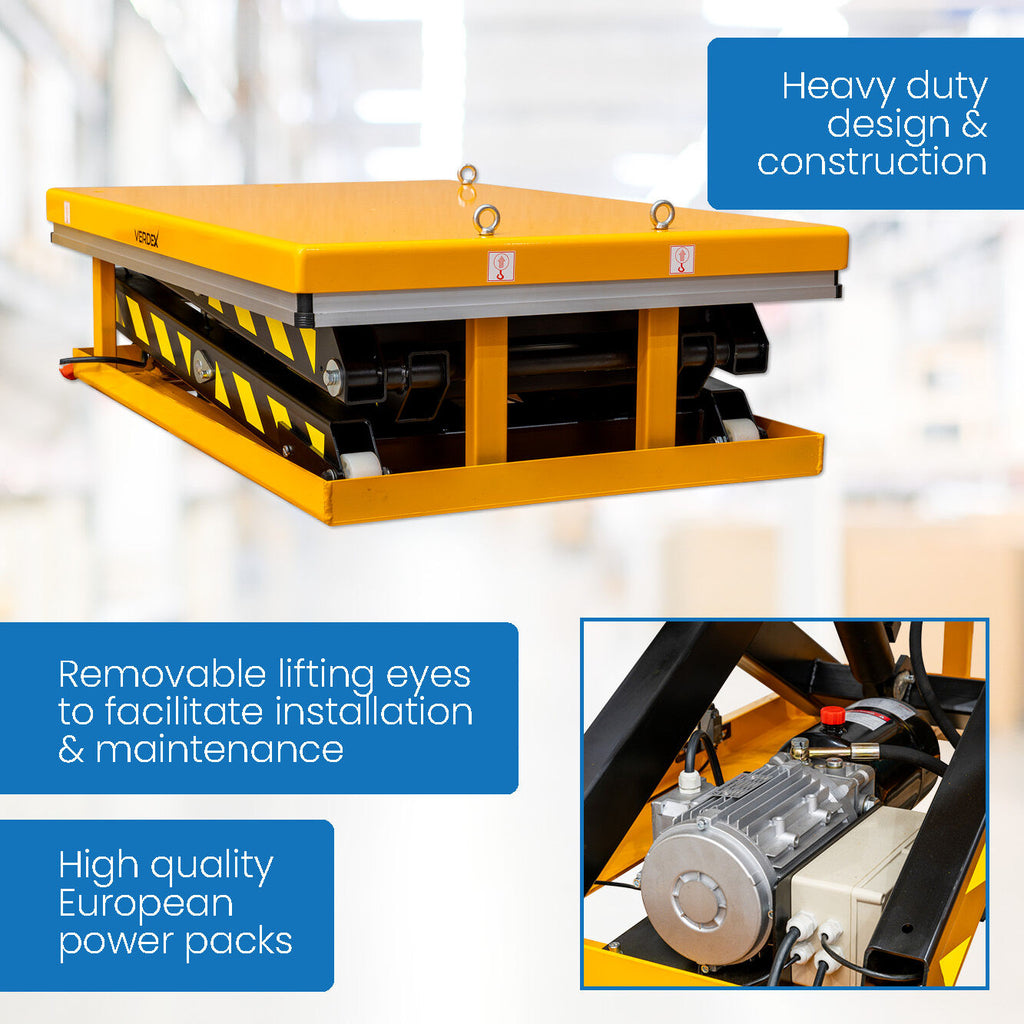

Heavy duty design and construction
-
High quality European power packs
-
Suitable for on floor applications or in floor pit applications
-
Self lubricating bushings on pivot points
-
Removable lifting eyes to facilitate installation and maintenance
-
Standard Safety Features
-
Upper platform fitted with aluminium safety bar preventing descent on contact with obstructions.
-
Low volt (24v) control box with up-down buttons.
-
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
-
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
-
Safety clearance between scissors to prevent trapping during operation.
-

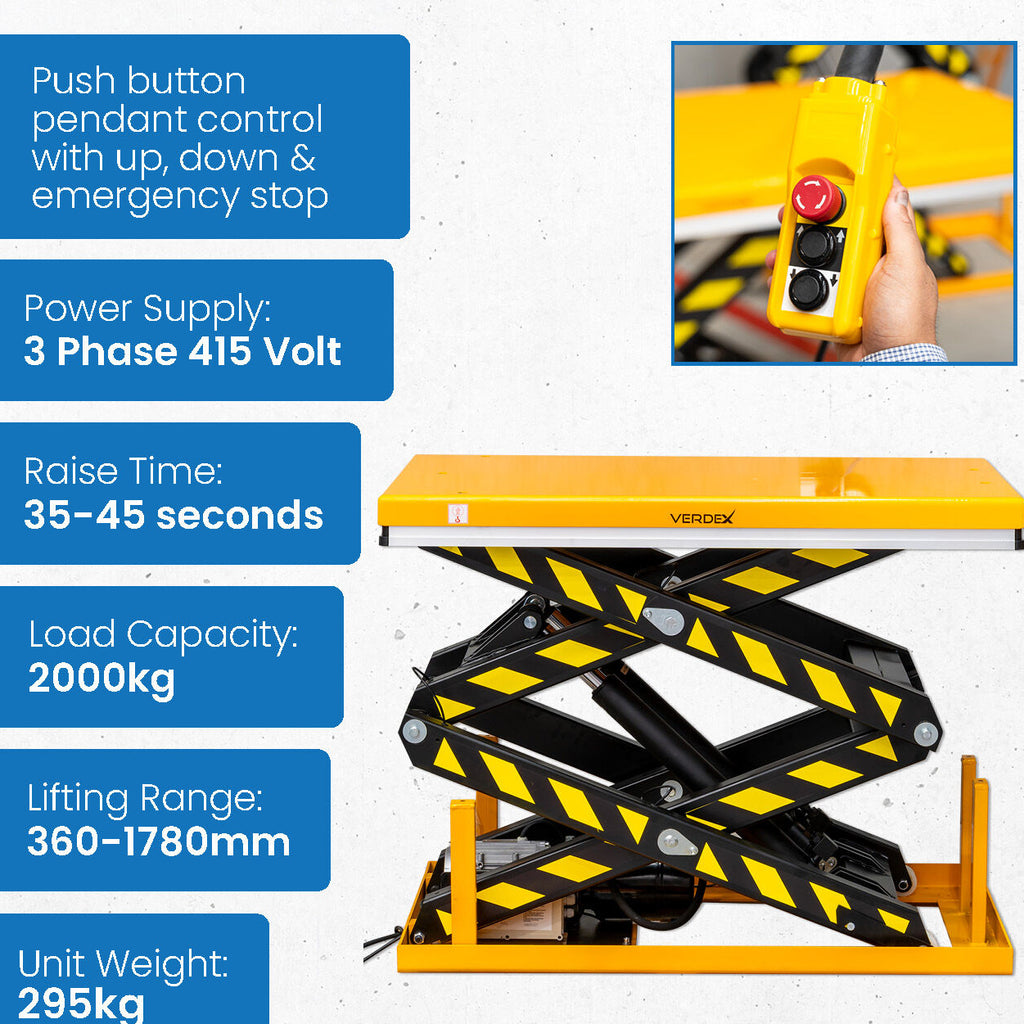

Push button pendant control with up, down and emergency stop.
-
Single and 3 Phase options available
Specifications:-
| Model | HIW2.1 | HIW4.2 |
| Capacity | 2000kg | 4000kg |

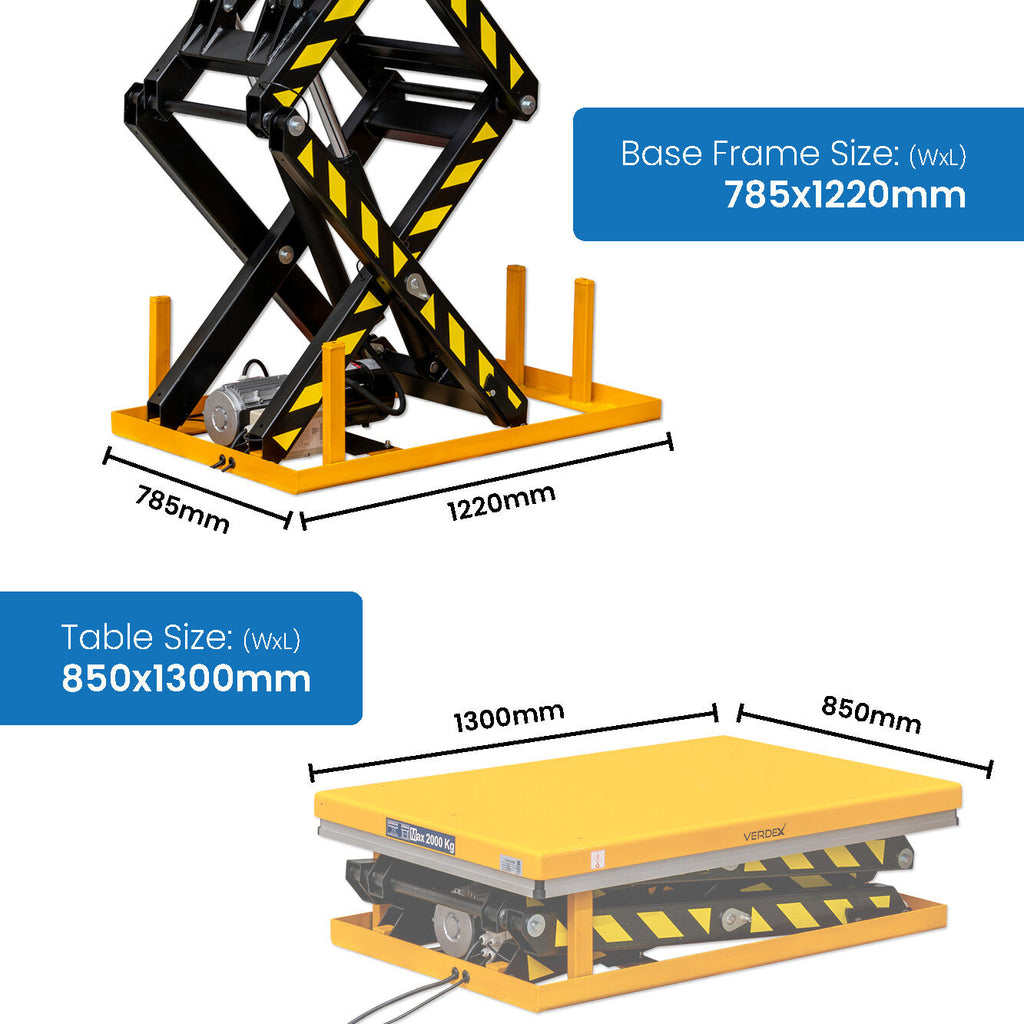

| Table Size | 850x1300mm |

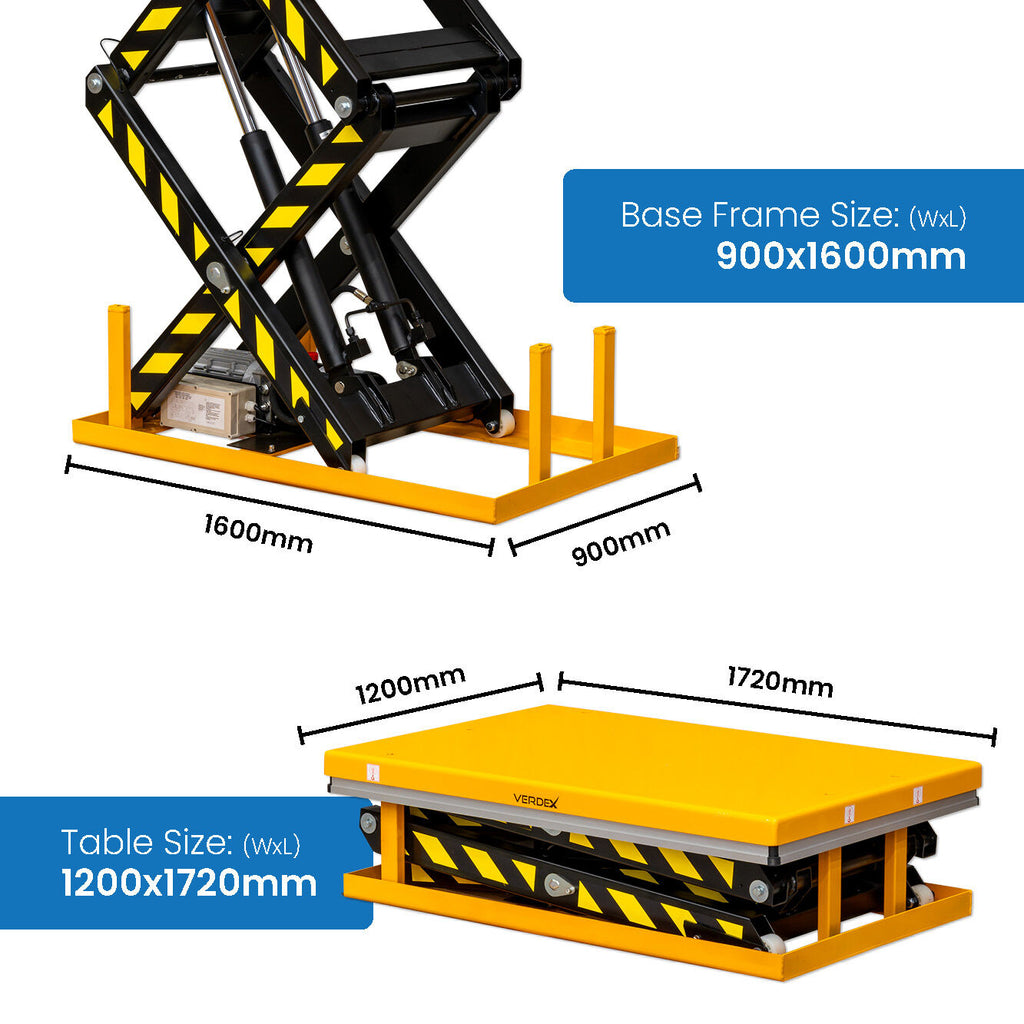

1200x1720mm |
Base Frame Size |
785x1220mm | 900x1600mm |
Raise Time |
35-45 secs | 55-65 secs |
Min Height |
360mm | 400mm |
Max Height |
1780mm | 2050mm |
Unit Weight |
295kg | 520kg |
Power Supply |
3 Phase 415 Volt |
Single Phase 240 Volt
|
