1T Manual Low Profile Pallet Truck Fork Width 540mm
Warranty:-1 Year
Description:-
This Low-Boy Hand Pallet Jack Trucks have tapered forks that are reinforced for strength. Lift Truck features a spring-loaded self-righting safety loop handle and is easy-to-operate with 3-function hand control (Raise, Neutral, Lower) for smooth operation. Hardened chrome piston with protective dust cover ensures long, dependable service of this Lift Jack.

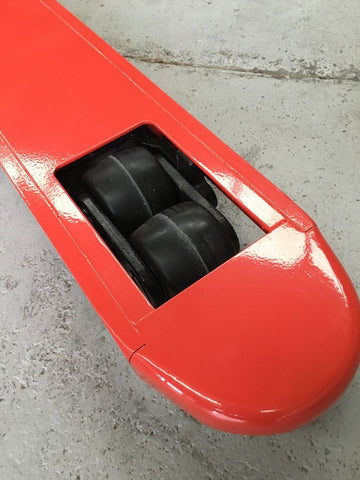

Floor protective polyurethane steer and load wheels, and includes entry rollers to ease pallet entry. Durable powder coat finish.This Low profile hand pallet truck, also known as manual pallet truck often used in logistics, warehouses, factories, hospitals, schools, shopping malls, airports, stadiums, station, airport and other places requires lifting.
Designed for low profile skids, pallets or machinery, up to 51mm. Have large load capacity up to 1000kg.
Features:-
Super low pallet jack, the min fork height only 35mm, great for special pallets. AC type adopted the integrated casting process and the overall seal design, with the high-quality imported components for key parts, the pump cant leak even when the seal for pressure cylinder breaks.
All the piston rods are chrome plated, which makes them good enough in heat resistance and hardness.
Unlike the scattered parts, the pump valve core with the overall design is convenient for maintenance.
With the overload protection on the valve, the pump cant lift when overloaded.
Specifications:-
Model | ACLOW-35 |
Capacity | 1000 kg |
Fork height range | 30-100 mm |
Steering wheel | 150x48 mm |
Load Roller | 35x60 mm |
Single fork width | 150 mm |
Width overall forks | 540 mm |
Fork length | 1150 mm |
Warranty |
1year |
Weight |
73kg |
Tyre type |
PU,Steel |
Inner Distance b/w two forks(mm) |
250 |
