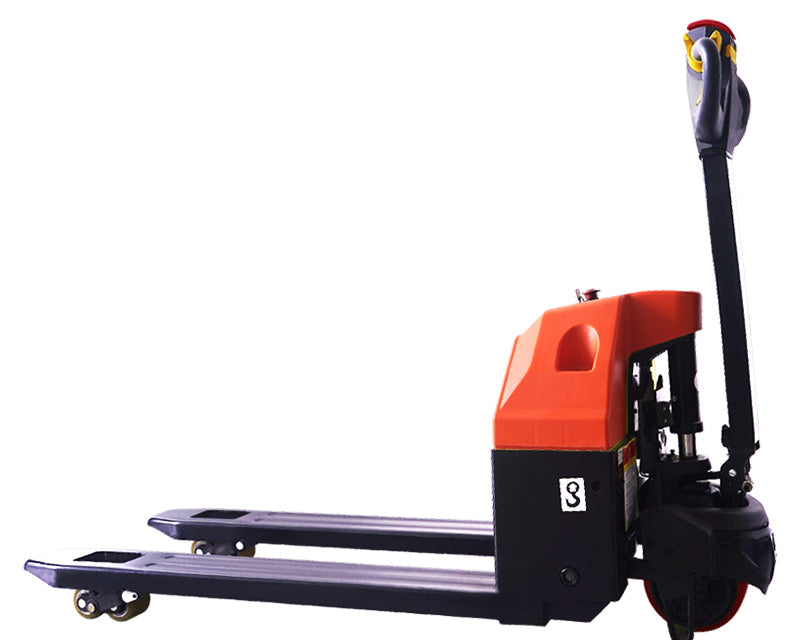

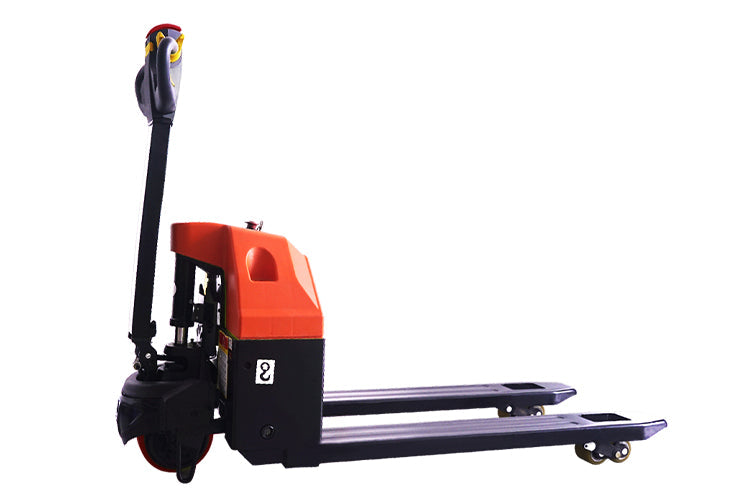

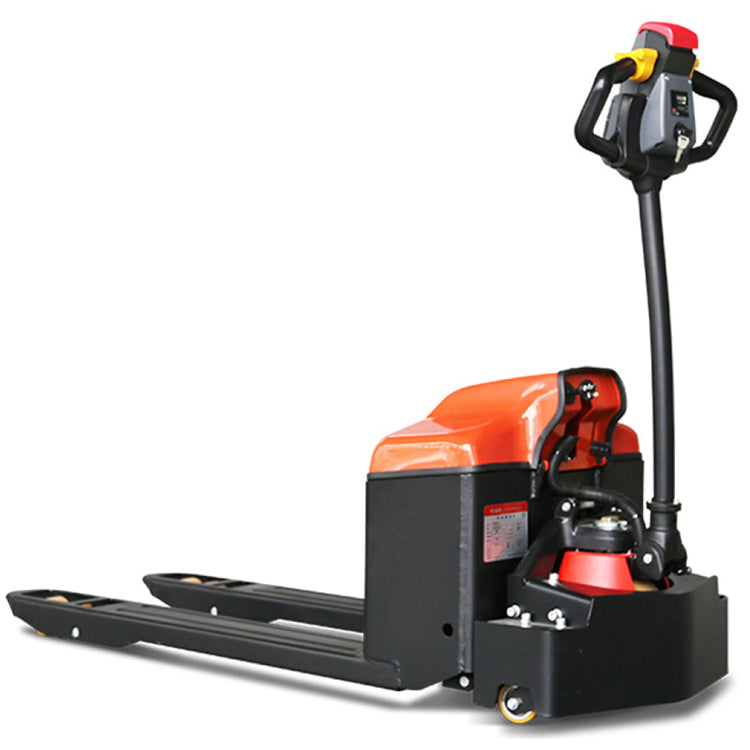

2.0T Heavy Duty Full Electric Pallet Jack Truck
Note:- stock available at vic store.please contact us for shipping quote /pickup.
Description:-
Full Electric pallet jack is a kind of efficient and convenient jacking equipment, which has a wide application prospect and market demand. In the process of use, users should strictly abide by the use specifications and maintenance requirements to ensure the safety and reliability of the equipment.

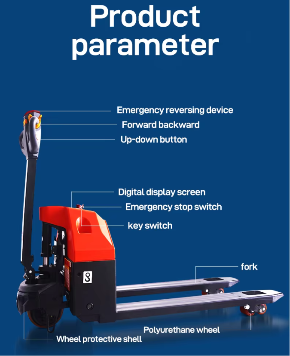

It is mainly composed of frame, drive wheel, steering wheel, motor, battery, fork and other parts. The frame is generally made of high-strength steel, strong and durable. The fork can be inserted into the fork hole at the bottom of the pallet to facilitate the lifting of goods.
Performance Advantage:-
Labor-saving and efficient: compared with manual handling, it greatly reduces the labor intensity of the operator. It can move goods quickly and improve work efficiency, especially for frequent short distance moving scenarios.
Flexible operation: Its compact body design allows it to shuttle freely in narrow channels and Spaces, and the turning radius is small, which is easy to work between warehouse shelves.
Strong carrying capacity: different models of electric cattle have different carrying capacity, generally can carry hundreds of kilograms to several tons of goods, to meet a variety of cargo handling needs.
Specifications:-
Capacity: 2000kg
Load Center: 600 mm
Service weight with battery: 520 kg
driving wheels size:160*55mm
Balance wheels size:75*50mm
Bearing wheels size: 80×70 mm
Min Fork lowered height -Max Fork lifting Height: 85-200 mm
Overall height (with/without handle): 1250/680 mm
Overall length: 1750 mm
Length to fork face: 592 mm
Overall width: 685 mm

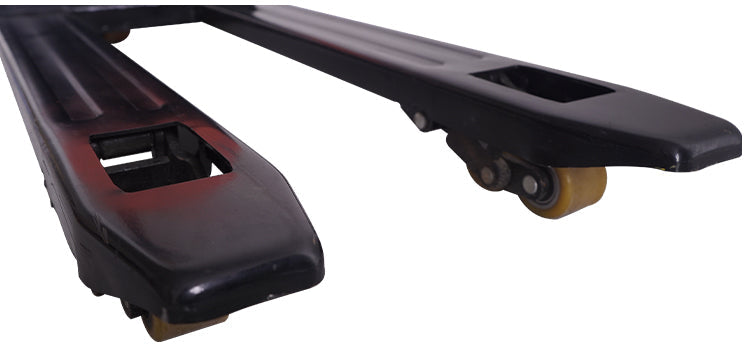

Fork dimensions: 50x160x1200 mm (H x W x L)
Min. Turning radius: 1340 mm
Performance Travel speed, laden/unladen: 4/5 km/h
Lifting speed, laden/unladen: : 30/35 mm/s
Lowering speed, laden/unladen: : 35/25 mm/s
Maximum climbing ability, with/without load: 8/20 %
Drive motor/lift motor(KW): DC0.75/DC0.8;DC1/DC0.8
Battery voltage/rated capacity: 48/20 V/Ah
AI lowable max/min Battery weight(Kg) ;28/24
Driver operation noise level(A) <70 db
Type of drive control: DC
Steering Type: Mechanical
Service brake: Electromagnetic
