2T Capacity Manual Standard Pallet StackerLift 1600MM
Stock:-Pick Up is available at vic Mickleham Branch ONLY. Delivery is available National-wide
Description:-

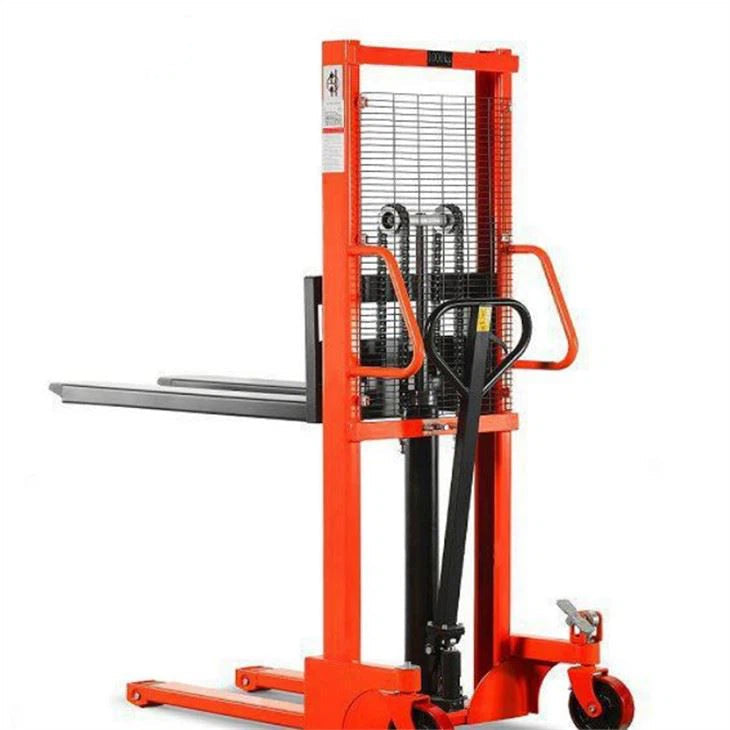

Manual hand pallet stacker 2000kg capacity and 1600mm lift height.It has a robust steel profile construction, with hand and foot operating levers.
It has been precision engineered for smooth operation and performance and offers an economical lifting solution for pallets, skids and dies.
High speed limited, the forklift will reduce the lift speed when lift to a high position. High strength overhead guard to protect the operator.
Both small and compact, this makes the stacker truck ideal for operating in small areas.
Features:-
- Suitable only for open based pallets
- Large 2000kg capacity
- Manual Push
- Totally sealed hydraulic pump with a slow lowering hand control valve
- Not suitable for fully enclosed pallet
- Available options = foot pump and wheel protection
- Wheel Locking Brake
- Precision hydraulic
- Foot or hand operated pump
Specifications:-
Product parameters
|
Model |
Unit |
C2T16 |
|
Rated Load |
Q(Kg) |
2000 |
|
Rated Load Center |
C(mm) |
450 |
|
Total Length |
mm |
1470 |
|
Total width |
mm |
700 |
|
Fork dimensions (L*W) |
mm |
900*120 |
|
Ground clearance(mm) |
mm |
20 |
|
Fork Width |
mm |
260-740 |
